INPUT BOARD

And welcome back to our project. Now, we are starting on the INPUT BOARD.

The RS Series Console used 6 Channel Input boards; we are going to do single channel boards, as I may opt for a 5-channel mixer rather than the 6-channel board we have been planning. More on that later.

The parts list below is for ONE Channel. You can multiply, right ? For those of you that went to U.C.F., get your neighbor kid to help. (Just kidding, no calls, please.)

A word about the parts list. A few of the parts were hard to find so some came from EBAY. I have given you part numbers and the Vendor who as of 12-1-2022 had stock. Your results may vary.

Keep in mind that you can get many of these parts in bulk and SAVE, (See Chapter 2 - SETTING UP SHOP for some of my Ebay and Amazon buys) Use the Vendor List & Part numbers as a guide.

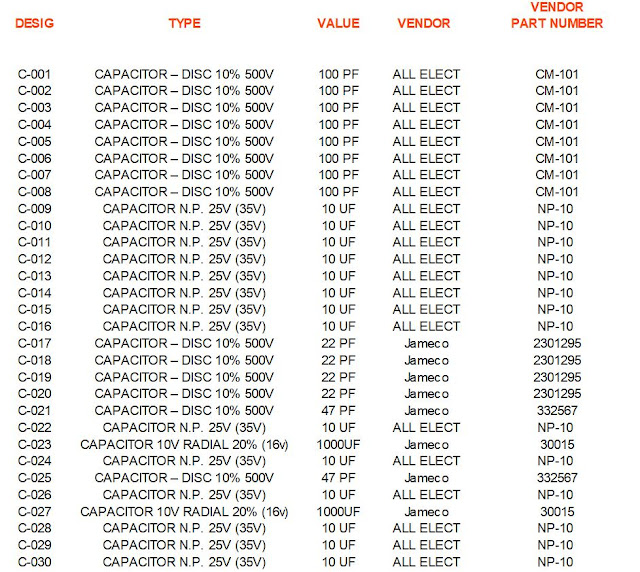

PARTS LIST

(NOTE: This is 'preliminary' and only for ONE input. I will post a final 'complete' parts list at the end of this blog. Also note that since this was prepared, ALL ELECTRONICS has closed their doors.)









Note: In my version I have changed J-9 (Mixer Control) from a 16 pin I.C. Socket to a 2x8 header. The same change will be used when I do the Input Controller Cards.

Note # 2: The P1086 transistor is OBSOLETE. I ordered some from Ebay, but I will also play around and see if I can come up with a substitute.

Note #3: The original VCA is also obsolete, but Radio Systems started using a different version that eliminated a resistor and changed the value of another. This change has been incorporated into our design.

-----------------------------------------------------------------------------------------------------------------------------------
Let's look at the schematic.

Here is how the input board works. (Thanks to the Radio Systems manual)

-----------------------------------------------------------------------------------
Six Channel Input Board Circuit Description Brief Description

7.2.1 Brief Description

The Six Channel Input Board contains six identical stereo amplifiers which provide the following:

1. selection of the input signal
2. gain adjustment of the input signal
3. routing of the selected signal to the desired mix buss or busses

7.2.2 Detailed Description

The left and right channels are identical, so only the left will be discussed.

Left channel input A signals are attenuated 13dB by Rl, R3, and R2 (or by R8, R7 and R9 for input B) before routing to IC Ul, a type 4052 analog switch. The amount of attenuation may be varied by the installation of resistors into the DIP component carriers (see below for discussion of the DIP attenuator's), and then plugging the DIP component carriers into socket J3 for input A or J4 for input B. Bridging R3 (or R9) would increase the attenuation while bridging Rl and R2 (or R8 and R7) would decrease the attenuation. Adjusting the attenuation allows each input to accept signals ranging from microphone to high level.

Integrated circuit Ul selects either input A or input B depending on the voltage present on pin U1-10. A low on pin 10 will allow input A signals to reach the following circuitry. Input B will
be selected if pin 10 is high. The voltage on pin10 is controlled by circuitry on the Input Control Board.

Integrated circuit U3 (sections A, B, and C) and transistors Ql and Q2 form a differentially balanced instrumentation amplifier for left channel input signals. Transistors Ql and Q2 are low
noise devices which allow this circuit to operate with microphone levels in addition to high level inputs.

Transistors Ql, Q2, and integrated circuits U3A and U3D form a balanced amplifier whose gain is determined by R28, R29 and R21. The gain may be increased by the installation of jumpers onto header J5 which would reduce the value of R21. A -7.5v reference is fed to the positive inputs of U3A and U3D which in turn control the current through Ql and Q2 so that the negative inputs of U3A and U3D also remain at -7.5v. This feedback makes Ql (Q2) a part of U3A (U3D) rather than an independent amplifier preceding the IC. Integrated circuit U3B is a differential amplifier which converts the balanced signal from U3A and U3D to a unbalanced signal.

The signal from U3B is summed with right channel signal from U4C and routed to Q7 which will place this mono signal onto the Cue Buss when the Q7 is turned on (by pulling its gate low) by the Input Control Board. In addition, the signal also is routed to J7, a stereo unbalanced insert point, as well as header J7, which allows bypassing of the patch point, and easy placement of a mixing channel into mono operation. In this case, the left input would feed both the left and the
right channel mix busses. The level at this point is nominally -4dBm. Integrated circuit U3C buffers the signal from the insert point prior to IC U6, a dBx Voltage Controlled Amplifier (VCA).

The VCA is a current in, current out device, which may provide amplification as well as attenuation of the signal from U3C. The VCA is capable of over 100 dB of level control,
depending upon the control voltage applied to pin 3 of the VCA. The front panel linear taper fader supplies a control voltage ranging from +7.5v at the minimum setting of the fader to 0 volts at the maximum setting. This voltage is applied to the positive input of U7B which serves as a buffer. Resistors R75 and R76 attenuate the buffered control voltage to levels acceptable by the VCA. Transistors Q5 and Q6 in conjunction with resistors R78 and R79 shunt R76 to convert the 50 linear fader taper into a three-slope audio taper approximation. The turn on points for Q5 and Q6 are determined by the fader setting and the voltage reference on the bases of Q5 and Q6. U7A and resistors R74 and R77 add a negative offset to the control voltage so that the VCA is at unity gain at normal fader settings and is supplying 15dB of gain at the maximum fader setting. In addition, U7A drives both left and right channel VCAs to maintain proper channel tracking. VR2 is the
VCA distortion null adjustment. Integrated circuit U8A converts the current output from the VCA into a voltage.

Integrated circuit U10 is a 4053 analog switch which connects the output of U8A to the mix busses as determined by voltages from the Input Control Board which are applied to U10 pins 6,
9, 10, and 11. Pin 6 must be low in order for the signal from U8A to reach any mix buss. Pulling pin 9 high (+7.5v), in conjunction with pulling pin 6 low, will place the signal from U8A onto the mono mix buss. Similarly, pulling pin 10 or pin 11 high will place the signal onto the audition and program mix buss respectively. Since pins 9, 10, and 11 operate Independently from each other, any combination of mix busses may be selected at the same time.

-----------------------------------------------------------------------------------
DIP ATTENUATORS

The following chart shows how to build and use the DIP Attenuators, depending on the TYPE of input source you are using. It also shows how to set the Gain Pins on the input board. It is critical to the operation of the console. So do what I did. BUILD extras and have them on have in case you change input sources.

These are built on a carrier that fits the 14-pin I.C. socket J-3 & J-4. They WERE NOT included in the parts list, and I could not find what I used before. I did find some at 4-5 dollars each, but they were SPECIAL ORDER. So, we are trying the DH-14D from ALL Electronics. (Now that they are out of business, we need to find another source.


Carefully remove the top portion. You do not need it. Wire as the chart shows. With this part the resistors will be slanted a bit. But who cares? Right?

Here is my first attempt.


Now that we have a parts list, and reviewed how the board works, let's get to work on the SCHEMATIC.

Here is a schematic from the original manual.

And my version. (I split up my drawing, so it is more readable.)

NOTE: This is 'preliminary' I will post a final schematic version at the end of this blog.








Now that you have studied the drawing for three weeks, (It may take that long- I have been studying them for 10 years) let's move on to the CIRCUIT BOARD) And have a refreshing adult beverage.

YIPPEE!!!  Hey, we are building a Radio Console, so the BEER MUG has to be radio themed. (Don't worry, I have more radio mugs. I'll save one for you.)

The board is straight forward. Take your time and CHECK CHECK CHECK those part clearances.

I am NOT ordering the boards until I have ALL the parts on hand so I can verify the clearances.

Keep working on the schematic and the board views, until you are 200% certain, there are NO mistakes.

Now you can order your parts, AND the boards.

Let's take a look.




And the board from JLCPCB


We have come to the point in our journey where we get to actually BUILD something.

That's next time.

Here is a 'sneak peek'.

See you then.

Here is the FINAL SCHEMATIC and PARTS LIST!!!! (This is for 1 INPUT)






PARTS LIST INPUT BOARD
COMPONENT TYPE DESIG. VALUE
CAPACITOR DISC     C-001         100 PF
CAPACITOR DISC     C-002         100 PF
CAPACITOR DISC     C-003         100 PF
CAPACITOR DISC     C-004         100 PF
CAPACITOR DISC     C-005         100 PF
CAPACITOR DISC     C-006         100 PF
CAPACITOR DISC     C-007         100 PF
CAPACITOR DISC     C-008         100 PF
CAPACITOR DISC     C-017         22 PF
CAPACITOR DISC     C-018         22 PF
CAPACITOR DISC     C-019         22 PF
CAPACITOR DISC     C-020         22 PF
CAPACITOR DISC     C-021         47 PF
CAPACITOR DISC     C-025         47 PF
CAPACITOR DISC     C-032         47 PF
CAPACITOR DISC     C-033         47 PF
CAPACITOR DISC     C-031         .1 UF
CAPACITOR DISC     C-037         .1 UF
CAPACITOR DISC     C-051         .1 UF
CAPACITOR NON-POLARIZED C-035 100 UF 16V
CAPACITOR NON-POLARIZED C-036 100 UF 16V
CAPACITOR ELECTROLYTIC         C-039 100 UF 25V
CAPACITOR ELECTROLYTIC         C-046 1000 UF 10V
CAPACITOR ELECTROLYTIC         C-047 1000 UF 10V
CAPACITOR ELECTROLYTIC         C-048 1000 UF 10V
CAPACITOR ELECTROLYTIC         C-049 1000 UF 10V
CAPACITOR NON-POLARIZED C-009 10 UF 25V
CAPACITOR NON-POLARIZED C-010 10 UF 25V
CAPACITOR NON-POLARIZED C-011 10 UF 25V
CAPACITOR NON-POLARIZED C-012 10 UF 25V
CAPACITOR NON-POLARIZED C-013 10 UF 25V
CAPACITOR NON-POLARIZED C-014 10 UF 25V
CAPACITOR NON-POLARIZED C-015 10 UF 25V
CAPACITOR NON-POLARIZED C-016 10 UF 25V
CAPACITOR NON-POLARIZED C-022 10 UF 25V
CAPACITOR NON-POLARIZED C-024 10 UF 25V
CAPACITOR NON-POLARIZED C-026 10 UF 25V
CAPACITOR NON-POLARIZED C-028 10 UF 25V
CAPACITOR NON-POLARIZED C-029 10 UF 25V
CAPACITOR NON-POLARIZED C-030 10 UF 25V
CAPACITOR NON-POLARIZED C-034 10 UF 25V
CAPACITOR NON-POLARIZED C-038 10 UF 25V
CAPACITOR NON-POLARIZED C-040 10 UF 25V
CAPACITOR NON-POLARIZED C-041 10 UF 25V
CAPACITOR NON-POLARIZED C-042 10 UF 25V
CAPACITOR NON-POLARIZED C-043 10 UF 25V
CAPACITOR NON-POLARIZED C-044 10 UF 25V
CAPACITOR NON-POLARIZED C-046 10 UF 25V
DIODE         SWITCHING                 D-01 1N4148
DIODE         SWITCHING                 D-02 1N4148
HEADER IDC                          J-010       26 PINS-DUAL ROWS
HEADER IDC                          J-011 26 PINS-DUAL ROWS
HEADER MOLEX                 J-012 15 PIN .1
HEADER MOLEX                 J-013 3 PIN .1
HEADER MOLEX                 J-014 3 PIN .1
HEADER MOLEX                 J-015 3 PIN .1
HEADER SCREW                 J-001 5 PIN
HEADER SCREW                 J-002 5 PIN
HEADER SCREW                 J-008 5 PIN
SOCKET DIP                         J-003 14 PIN
SOCKET DIP                         J-004 14 PIN
SOCKET DIP                         U3    SOCKET 14 PIN
SOCKET DIP                         U4    SOCKET 14 PIN
HEADER DUAL ROW         J-005 6 PIN .1
HEADER DUAL ROW         J-006 6 PIN .1
PLUG JUMPER                         J-005 2 PIN .1
PLUG JUMPER                         J-006 2 PIN .1
PLUG JUMPER                         J-007 2 PIN .1
HEADER SIP                         J-007 5 PIN SINGLE ROW .1
SOCKET IDC                         J-009 2 ROW 16 PINS
TRANSISTOR PNP                 Q-001 MPS4355
TRANSISTOR PNP                 Q-002 MPS4355
TRANSISTOR PNP                 Q-003 MPS4355
TRANSISTOR PNP                 Q-004 MPS4355
TRANSISTOR PNP                 Q-005 MPS4355
TRANSISTOR PNP                 Q-006 MPS4355
TRANSISTOR FET                 Q-007 P-1086
RESISTOR         FILM  R-013 1.0 MEG ¼ WATT 1 %
RESISTOR         FILM  R-014 1.0 MEG ¼ WATT 1 %
RESISTOR         FILM       R-015 1.0 MEG ¼ WATT 1 %
RESISTOR         FILM R-016 1.0 MEG ¼ WATT 1 %
RESISTOR         FILM R-017 1.0 MEG ¼ WATT 1 %
RESISTOR         FILM R-018 1.0 MEG ¼ WATT 1 %
RESISTOR             FILM R-019 1.0 MEG ¼ WATT 1 %
RESISTOR         FILM R-020 1.0 MEG ¼ WATT 1 %
RESISTOR         FILM R-001 7.87 K ¼ WATT 1 %
RESISTOR         FILM R-002 7.87 K ¼ WATT 1 %
RESISTOR         FILM R-004 7.87 K ¼ WATT 1 %
RESISTOR         FILM R-005 7.87 K ¼ WATT 1 %
RESISTOR         FILM R-007 7.87 K ¼ WATT 1 %
RESISTOR         FILM R-008 7.87 K ¼ WATT 1 %
RESISTOR         FILM R-010 7.87 K ¼ WATT 1 %
RESISTOR         FILM R-011 7.87 K ¼ WATT 1 %
RESISTOR         FILM R-021 5.11 K ¼ WATT 1 %
RESISTOR         FILM R-028 5.11 K ¼ WATT 1 %
RESISTOR         FILM R-029 5.11 K ¼ WATT 1 %
RESISTOR         FILM R-035 5.11 K ¼ WATT 1 %
RESISTOR         FILM R-039 5.11 K ¼ WATT 1 %
RESISTOR         FILM R-040 5.11 K ¼ WATT 1 %
RESISTOR         FILM R-049 5.11 K ¼ WATT 1 %
RESISTOR         FILM R-050 5.11 K ¼ WATT 1 %
RESISTOR         FILM R-056 5.11 K ¼ WATT 1 %
RESISTOR         FILM R-057 5.11 K ¼ WATT 1 %
RESISTOR         FILM R-022 1580 OHMS ¼ WATT 1 %
RESISTOR         FILM R-038 1580 OHMS ¼ WATT 1 %
RESISTOR         FILM R-023 365 OHMS ¼ WATT 1 %
RESISTOR         FILM R-036 365 OHMS ¼ WATT 1 %
RESISTOR         FILM R-024 19.1 OHMS ¼ WATT 1 %
RESISTOR         FILM R-037 19.1 OHMS ¼ WATT 1 %
RESISTOR         FILM R-026 10.2 K ¼ WATT 1 %
RESISTOR         FILM R-027 10.2 K ¼ WATT 1 %
RESISTOR         FILM R-033 10.2 K ¼ WATT 1 %
RESISTOR         FILM R-034 10.2 K ¼ WATT 1 %
RESISTOR         FILM R-043 10.2 K ¼ WATT 1 %
RESISTOR         FILM R-045 10.2 K ¼ WATT 1 %
RESISTOR         FILM R-047 10.2 K ¼ WATT 1 %
RESISTOR         FILM R-048 10.2 K ¼ WATT 1 %
RESISTOR         FILM R-055 10.2 K ¼ WATT 1 %
RESISTOR         FILM R-061 10.2 K ¼ WATT 1 %
RESISTOR         FILM R-064 10.2 K ¼ WATT 1 %
RESISTOR         FILM R-065 10.2 K ¼ WATT 1 %
RESISTOR         FILM R-081 10.2 K ¼ WATT 1 %
RESISTOR             FILM R-030 28.0 K ¼ WATT 1 %
RESISTOR         FILM R-031 28.0 K ¼ WATT 1 %
RESISTOR         FILM R-041 28.0 K ¼ WATT 1 %
RESISTOR         FILM R-042 28.0 K ¼ WATT 1 %
RESISTOR         FILM R-032 10 K ¼ WATT 1 %
RESISTOR         FILM R-086 10 K ¼ WATT 1 %
RESISTOR         FILM R-087 10 K ¼ WATT 1 %
RESISTOR         FILM R-093 10 K ¼ WATT 1 %
RESISTOR         FILM R-095 10 K ¼ WATT 1 %
RESISTOR         FILM R-099 10 K ¼ WATT 1 %
RESISTOR         FILM R-100 10 K ¼ WATT 1 %
RESISTOR         FILM R-101 10 K ¼ WATT 1 %
RESISTOR         FILM R-102 10 K ¼ WATT 1 %
RESISTOR         FILM R-103 10 K ¼ WATT 1 %
RESISTOR         FILM R-003 5.76 K ¼ WATT 1 %
RESISTOR         FILM R-006 5.76 K ¼ WATT 1 %
RESISTOR         FILM R-009 5.76 K ¼ WATT 1 %
RESISTOR         FILM R-012 5.76 K ¼ WATT 1 %
RESISTOR         FILM R-044 20 K ¼ WATT 1 %
RESISTOR         FILM R-062 20 K ¼ WATT 1 %
RESISTOR         FILM R-084 20 K ¼ WATT 1 %
RESISTOR         FILM R-085 20 K ¼ WATT 1 %
RESISTOR         FILM R-046 392 OHM ¼ WATT 1 %
RESISTOR         FILM R-063 392 OHM ¼ WATT 1 %
RESISTOR         FILM R-051 4.75 K ¼ WATT 1 %
RESISTOR         FILM R-058 4.75 K ¼ WATT 1 %
RESISTOR         FILM R-078 4.75 K ¼ WATT 1 %
RESISTOR         FILM R-052 4.02 K ¼ WATT 1 %
RESISTOR         FILM R-059 4.02 K ¼ WATT 1 %
RESISTOR         FILM R-066 4.02 K ¼ WATT 1 %
RESISTOR         FILM R-072 4.02 K ¼ WATT 1 %
RESISTOR         FILM R-053 1.2 K ¼ WATT 1 %
RESISTOR         FILM R-054 100 K ¼ WATT 1 %
RESISTOR         FILM R-060 100 K ¼ WATT 1 %
RESISTOR         FILM R-067 220 K ¼ WATT 1 %
RESISTOR         FILM R-071 220 K ¼ WATT 1 %
RESISTOR         FILM R-080 100 K ¼ WATT 1 %
RESISTOR         FILM R-091 100 K ¼ WATT 1 %
RESISTOR         FILM R-092 100 K ¼ WATT 1 %
RESISTOR         FILM R-094 100 K ¼ WATT 1 %
RESISTOR         FILM R-068 15 K ¼ WATT 1 %
RESISTOR         FILM R-069 15 K ¼ WATT 1 %
RESISTOR         FILM R-069 NOT USED
RESISTOR         FILM R-073 NOT USED
RESISTOR         FILM R-074 187 K ¼ WATT 1 %
RESISTOR         FILM R-075 2.21 K ¼ WATT 1 %
RESISTOR         FILM R-077 2.21 K ¼ WATT 1 %
RESISTOR         FILM R-076 68.1 K ¼ WATT 1 %
RESISTOR         FILM R-079 47.5 K ¼ WATT 1 %
RESISTOR         FILM R-082 27.4 K ¼ WATT 1 %
RESISTOR         FILM R-083 27.4 K ¼ WATT 1 %
RESISTOR         FILM R-088 2.0 K ¼ WATT 1 %
RESISTOR         FILM R-089 2.0 K ¼ WATT 1 %
RESISTOR         FILM R-090 2.0 K ¼ WATT 1 %
RESISTOR         FILM R-096 2.0 K ¼ WATT 1 %
RESISTOR         FILM R-074 2.0 K ¼ WATT 1 %
RESISTOR         FILM R-098 2.0 K ¼ WATT 1 %
RESISTOR         FILM R-104 2.0 K ¼ WATT 1 %
RESISTOR         FILM R-105 2.0 K ¼ WATT 1 %
RESISTOR         FILM R-106 2.0 K ¼ WATT 1 %
RESISTOR         FILM R-107 2.0 K ¼ WATT 1 %
RESISTOR         FILM R-108 2.0 K ¼ WATT 1 %
RESISTOR         FILM R-109 2.0 K ¼ WATT 1 %
I.C. SWITCH                         U-01 CD-4052
I.C. SWITCH                         U-02 CD-4052
SOCKET                 U-01        SOCKET
SOCKET                 U-02        SOCKET
SOCKET                 U-09        SOCKET
SOCKET                 U-10        SOCKET
I.C. OP AMP                     U-03 LF347
I.C. OP AMP                         U-04 LF347
I.C. VCA                         U-05 DBX 2180A
I.C. VCA                         U-06 DBX 2180A
SOCKET SIP                 U-05        SOCKET 8 PIN
SOCKET SIP                 U-06        SOCKET 8 PIN
I.C.  OP AMP                         U-07 4558
SOCKET DIP                 U-07        SOCKET 8 PIN
SOCKET DIP                 U-08        SOCKET
I.C. OP AMP                         U-08        SOCKET NE5532
I.C. SWITCH                         U-09 4053
I.C. SWITCH                         U-10 4053
POTENTIOMETER TRIM VR1 50K
                                        VR2         50K

God Speed, Mother Nature.
.
.
.
.
.
.
The information presented here in this web site is for personal use only and may not be
 used commercially
We make no claim as to the accuracy of the information with-in.

INPUT BOARD

And welcome back to our project. Now, we are starting on the INPUT BOARD. The RS Series Console used 6 Channel Input boards; we are going to...
